Sigenergy · Three Phase
Three Phase Hybrid Inverter
Sigen Energy Controller · 5.0kW to 30.0kW
The Smart Core That Runs Your Whole Solar and Battery System

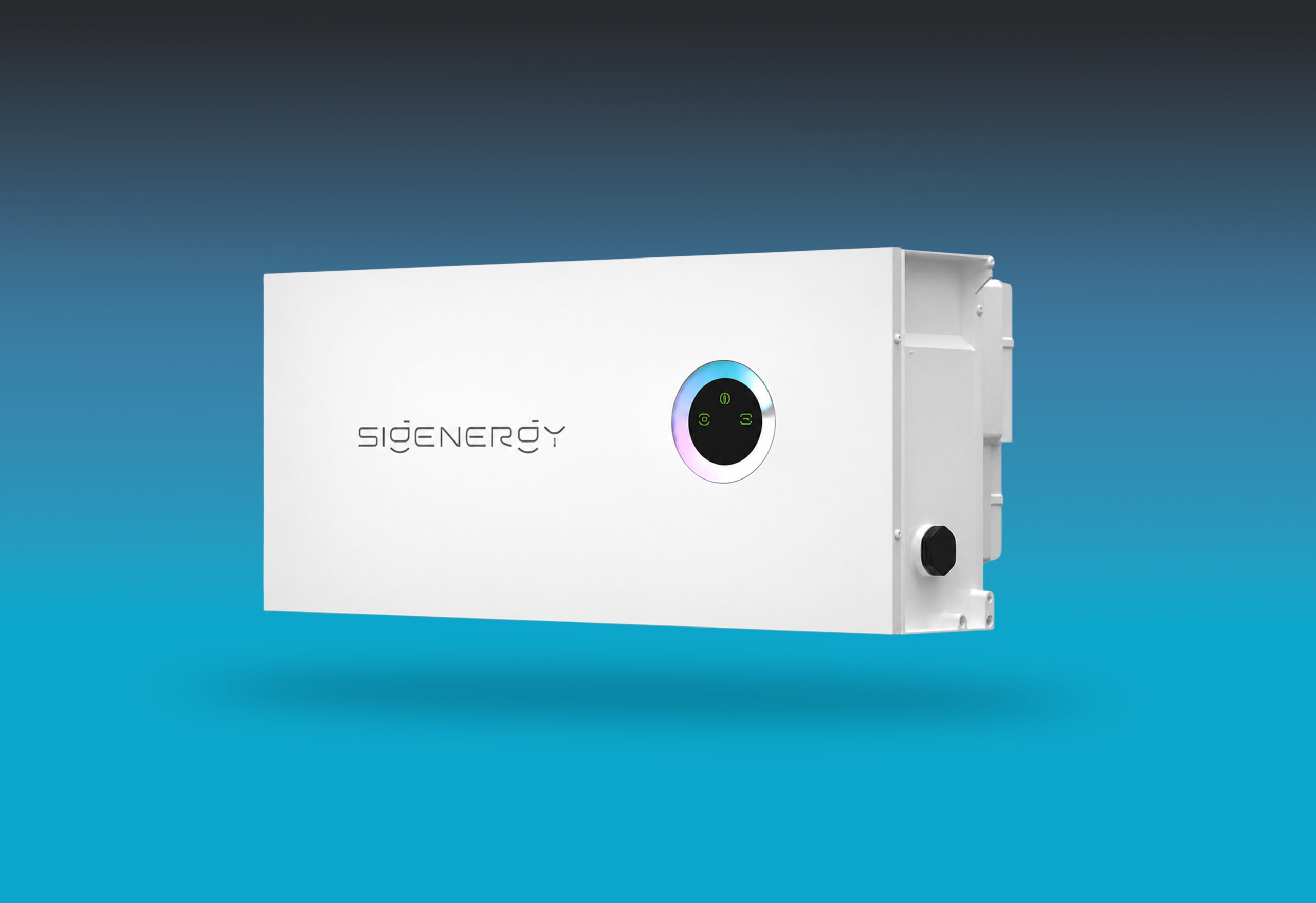

The three phase Sigen Energy Controller manages power between your solar panels, battery and the grid, delivering up to 98.4% efficiency and 0 millisecond backup switchover when paired with a Sigen Energy Gateway and Sigen Battery. Available from 5.0kW to 30.0kW for larger homes and small businesses.
Key Features & Benefits
EMS-Integrated Intelligent Management
Coordinates precisely with the battery and solar for precision control over output.
Unbalanced Three-Phase Output
Keeps three-phase homes and small businesses running efficiently, even with uneven loads across phases.
200% Peak Off-Grid Output
Provides an instant power boost for 10 seconds during a blackout, helping larger loads start when required.
Up to Four MPP Trackers
Draws maximum output from split, shaded or multi-orientation solar arrays, scaling from 2 trackers on smaller models to 4 on larger models.
Technical Specifications
- Power Range
- 5.0, 10.0, 15.0, 20.0, 25.0 and 30.0kW TP models
- Maximum Efficiency
- Up to 98.4%
- Backup Switchover
- 0 milliseconds*
- Battery Compatibility
- 1 to 6 modules, 600-900V range
- MPP Trackers
- 2 to 4, depending on model
- Operating Temperature
- -30°C to 60°C
- Ingress Protection
- IP66
AS/NZS 4777.2:2020+A1:2024 certified. *0 millisecond backup switchover requires a Sigen Energy Gateway and Sigen Battery.
