EMS-Integrated Intelligent Management
Coordinates precisely with the battery and solar for precision control over output.
Choose the Right Sigen Energy Controller
Smart hybrid inverter control for single-phase homes, three-phase homes, and small businesses.
SIGENSTOR SYSTEM COMPONENT
Single Phase

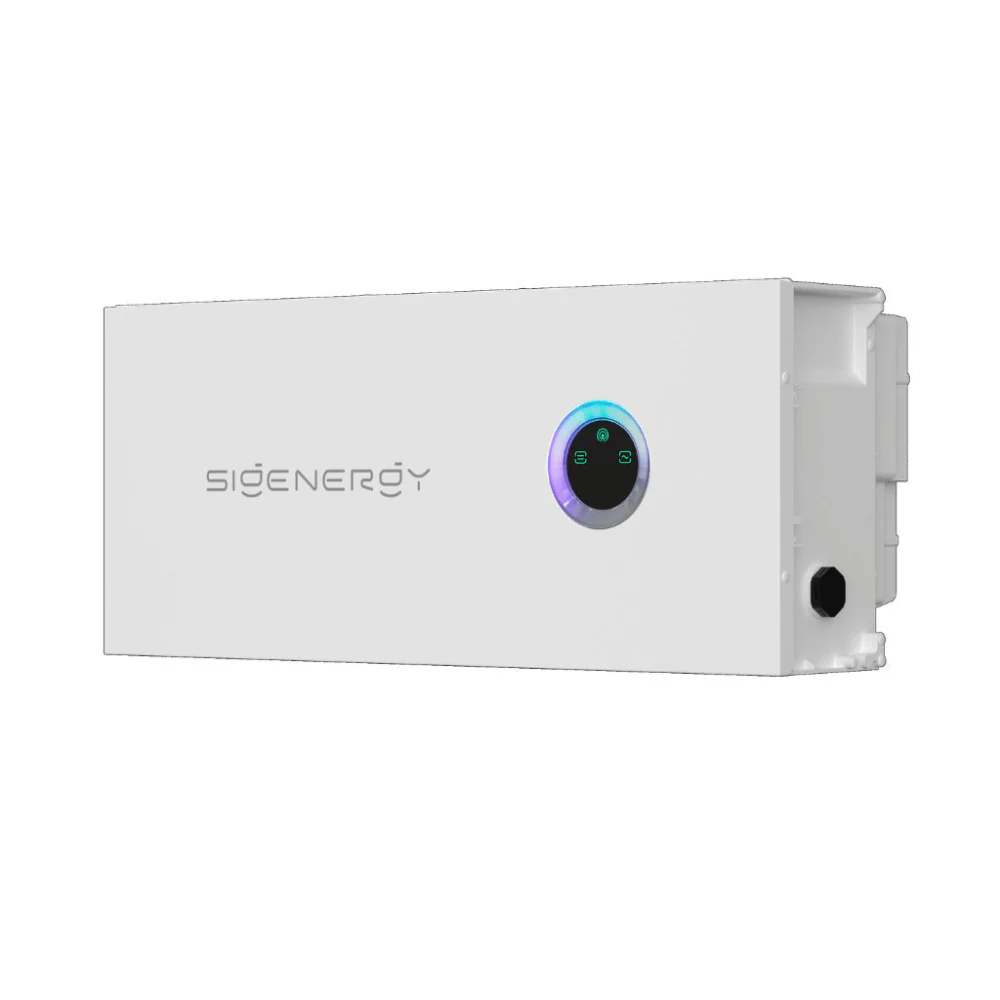

Single Phase Hybrid Inverter (Sigen Energy Controller)
The Smart Core That Runs Your Whole Solar and Battery System
The single phase Sigen Energy Controller manages the power flowing between your solar panels, battery, and the grid, reaching up to 98.0% efficiency and switching to backup power in 0 milliseconds when the grid goes down.
It’s available in five sizes from 5.0kW to 12.0kW, so Lenergy can match the controller to almost any single-phase home.
Get Your Free Quote TodayKey Features & Benefits
High DC/AC Ratio Compatibility
Supports up to a 2.0 DC/AC ratio, so an oversized solar array isn’t wasted.
200% Peak Off-Grid Output
An instant power boost for 10 seconds during a blackout, enough to start larger loads during a blackout.
Up to Four MPP Trackers
Draws maximum output from split, shaded, or multi-orientation solar arrays, scaling from 2 trackers on the smaller models up to 4 on the larger ones.
Performance
Technical Specifications
Certified to AS/NZS 4777.2:2020+A1:2024 for Australian grid connection.
- Power Range
- 5.0kW to 12.0kW (5.0, 6.0, 8.0, 10.0, 12.0 SP models)
- Max Efficiency
- Up to 98.0%
- Backup Switchover
- 0 milliseconds (requires Sigen Energy Gateway and Sigen Battery)
- Battery Compatibility
- 1 to 6 Sigen Battery modules per controller, 300–600V range
- MPP Trackers
- 2 to 4, depending on model
- Operating Temperature Range
- -30°C to 60°C
- Ingress Protection
- IP66
SIGENSTOR SYSTEM COMPONENT
Three Phase
Three Phase Hybrid Inverter (Sigen Energy Controller)
The Smart Core That Runs Your Whole Solar and Battery System
The three phase Sigen Energy Controller manages the power flowing between your solar panels, battery, and the grid, reaching up to 98.4% efficiency and switching to backup power in 0 milliseconds when the grid goes down.
It’s available in six sizes from 5.0kW to 30.0kW, so Lenergy can match the controller to larger homes and small businesses on a three-phase supply.
Get Your Free Quote TodayKey Features & Benefits
EMS-Integrated Intelligent Management
Coordinates precisely with the battery and solar for precision control over output.
Unbalanced Three-Phase Output
Keeps three-phase homes and small businesses running efficiently, even with uneven loads across phases.
200% Peak Off-Grid Output
An instant power boost for 10 seconds during a blackout, enough to start larger loads during a blackout.
Up to Four MPP Trackers
Draws maximum output from split, shaded, or multi-orientation solar arrays, scaling from 2 trackers on the smaller models up to 4 on the larger ones.
Performance
Technical Specifications
Certified to AS/NZS 4777.2:2020+A1:2024 for Australian grid connection.
- Power Range
- 5.0kW to 30.0kW (5.0, 10.0, 15.0, 20.0, 25.0, 30.0 TP models)
- Max Efficiency
- Up to 98.4%
- Backup Switchover
- 0 milliseconds (requires Sigen Energy Gateway and Sigen Battery)
- Battery Compatibility
- 1 to 6 Sigen Battery modules per controller, 600–900V range
- MPP Trackers
- 2 to 4, depending on model
- Operating Temperature Range
- -30°C to 60°C
- Ingress Protection
- IP66
Get Your Free Quote Today
Talk to Lenergy about matching a Sigen Energy Controller to your solar, battery, property, and power supply.
